Barcodes

Requirements

Scanner: Any scanner that is detected as a keyboard can be used (for example, it automatically types the scanned barcodes on a word application)

Printer: Any printer with a driver that supports printing to PDF and PNG files can be used.





Generate barcodes

The barcode functionality must be enabled in openBIS by a group admin: Enable Barcodes.

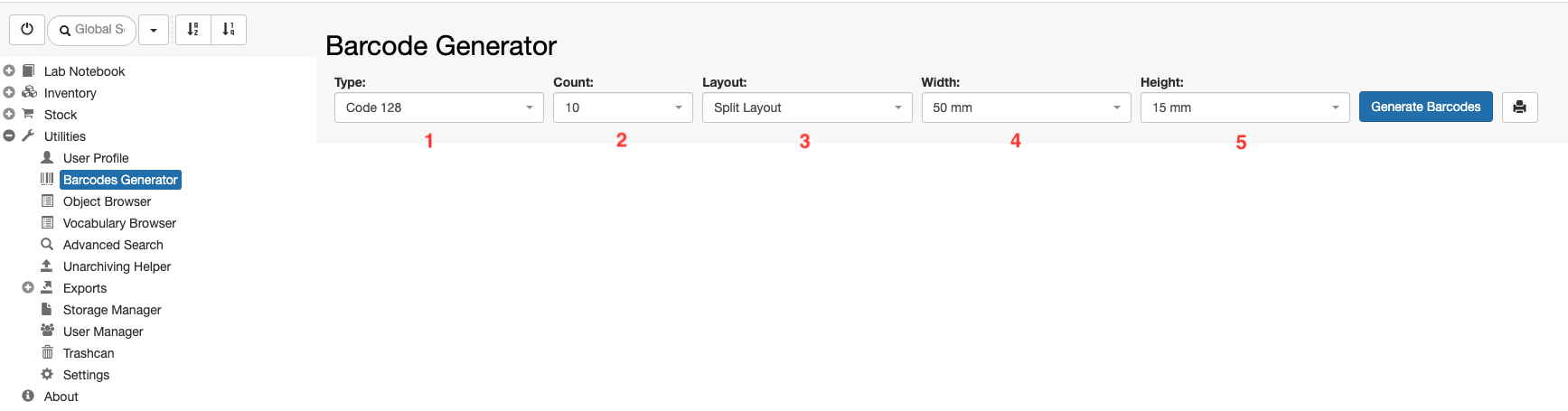

To generate new barcodes, go to the Barcodes Generator in the main menu under Utilities.



Users can select:

  1. The type of barcode to generate:
    1. Code 128
    2. QR Code
    3. Micro QR code
  2. The number of barcodes to generate
  3. The layout:
    1. Split: one barcode per page
    2. Continuous: several barcodes in one page
  4. The width of the barcode
  5. The length of the barcode

After selecting the desired parameters, click the Generate Barcodes button.

Using barcodes

When samples are registered, users can scan and assign barcodes to them:

  1. Go to the Parents section in the sample form

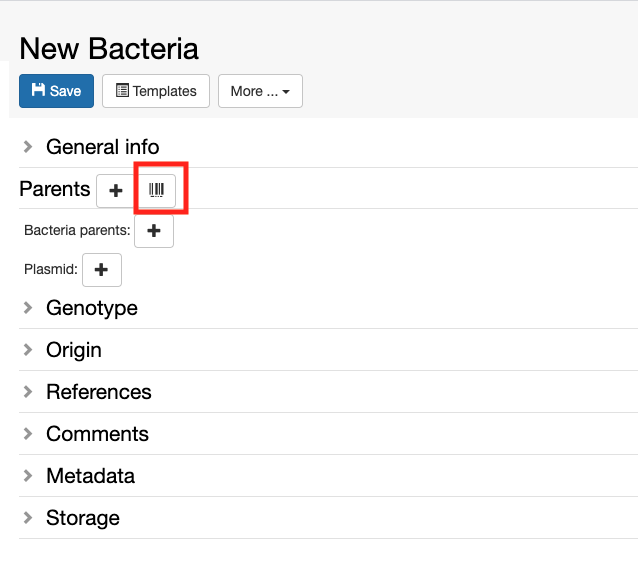

  2. Click on the barcode icon (see image below)
  3. Scan the barcode of the sample
  4. Click Add Objects

It is possible to use either openBIS-generated barcodes, or existing barcodes (on purchased products, for example).
